Encryption Keys

Feature Overview

Encryption Keys are the foundation of Radegast EDR’s security model. All log data sent from devices to the backend is encrypted using age encryption, and only users with the corresponding private keys can decrypt and view the content. This ensures end-to-end encryption and protects your sensitive security data.

What Value Does This Feature Add?

  • End-to-End Encryption: Logs are encrypted on the device and can only be decrypted by authorized users

  • Data Privacy: Even if the backend database is compromised, your log data remains encrypted

  • User-Specific Access: Each user has their own key pair, controlling exactly who can see what

  • Key Management: Generate, store, and manage encryption keys securely

  • Recovery Options: Recover access to encrypted data if a key is lost

Step-by-Step Guide

Understanding the Encryption Model

Radegast EDR uses a public-key cryptography model:

  1. Public Key: Stored on the server and shared with devices

    • Used to encrypt log data

    • Multiple users can share the same public key

  2. Private Key: Stored only in your browser’s localStorage

    • Used to decrypt log data

    • Never transmitted to the server

    • Unique to each user

  3. Encryption Flow:

    • Device encrypts logs with your public key

    • Encrypted logs are sent to and stored by the backend

    • You decrypt logs in your browser using your private key

Accessing Encryption Keys

  1. Log in to your Radegast Console

  2. Go to Settings > Encryption Keys or Keys section

  3. The Encryption Keys page shows all your public/private key pairs

Understanding the Keys List

The Keys page shows:

  • Name: Descriptive name you assigned to the key pair

  • Public Key: The full public key (safe to share)

  • Created: When the key pair was generated

  • Active: Whether this is your currently active key for new devices

  • Default: Whether this is your default key for decryption

  • Actions: Buttons to manage the key

Creating a New Key Pair

First-Time Setup (New User)

When you first log in, you may not have any keys:

  1. Go to Settings > Encryption Keys

  2. You’ll see a warning: “No encryption keys found”

  3. Click “Generate Key Pair” or “Create New Key”

  4. The system will:

    • Generate a new public/private key pair using age encryption

    • Store the private key securely in your browser

    • Display the public key

  5. Enter a name for this key pair (e.g., “My Main Key”, “Work Laptop”)

  6. The key pair is created and becomes your default

Creating Additional Keys

  1. Go to Settings > Encryption Keys

  2. Click “Generate Key Pair” or “Add Key”

  3. The system will generate a new key pair

  4. Enter a name for this key

  5. Choose whether to make it the active key for new devices

  6. Click “Create”

Tip: You can have multiple key pairs. Each device uses one public key for encryption.

Making a Key Active

Only one key can be “active” at a time. The active key is used for:

  • New devices you create

  • New sessions

  1. Click on the key in the list

  2. Click “Set as Active”

  3. Confirm the action

  4. This key will now be used for new devices

Warning: Changing your active key means new devices will use the new public key. Old devices continue using their original public key.

Setting a Default Key for Decryption

You can have multiple key pairs stored, but only one is used as the default for automatic decryption:

  1. Click on the key in the list

  2. Click “Set as Default”

  3. This key will be tried first when decrypting logs

Viewing Key Details

  1. Click on a key in the list

  2. The details panel shows:

    • Full public key

    • Creation timestamp

    • Whether it’s active and/or default

    • Associated devices (devices using this public key)

Deleting a Key Pair

  1. Click on the key in the list

  2. Click the “Delete” button

  3. You’ll see a warning: “Any logs encrypted using this key will become permanently unreadable unless you have a backup of the key. This action cannot be undone.”

  4. Confirm the deletion

Warning: If you delete a key pair that’s being used by devices, you will NOT be able to decrypt those devices’ logs anymore (unless you have another copy of the private key).

Important: You cannot delete your last key pair. Ensure you have at least one key before deleting another.

Key Recovery

If you lose access to your private key (e.g., browser cleared, new device), you have two recovery options:

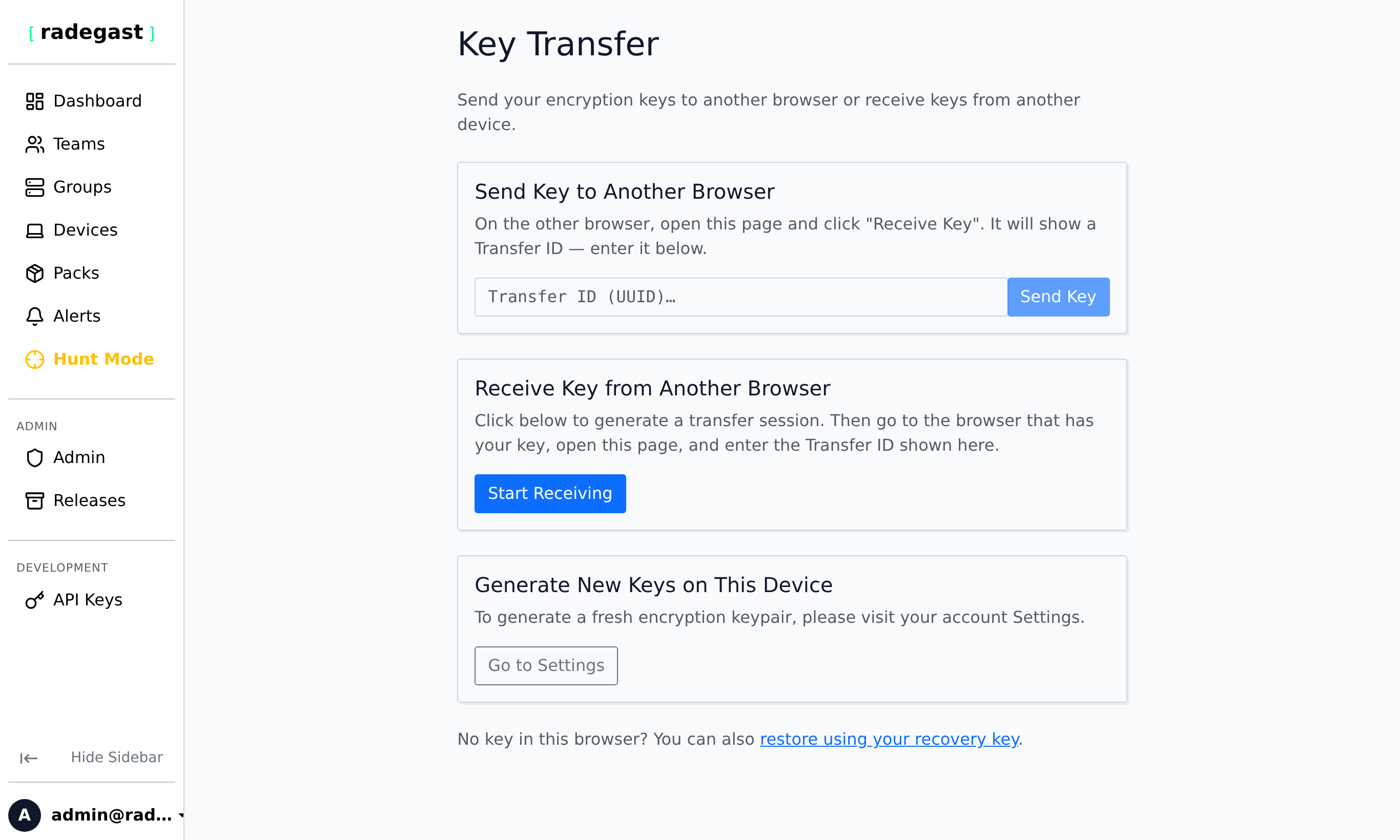

Option 2: Key Transfer from Another Browser

If you have your private key stored in another browser:

  1. Go to Keys > Transfer in the navigation

  2. On your source browser (where the key is stored), copy the Key Transfer Token

    • This is found in Settings > Encryption Keys > Transfer tab

  3. On your target browser, paste the transfer token

  4. The private key will be securely transferred and stored

Security: Transfer tokens are one-time-use and expire after a short period.

Generating a Recovery Key

When creating a new key pair, you have the option to generate a recovery key:

  1. During key creation, check “Generate Recovery Key” or similar option

  2. The system will generate a 256-bit AES key in hexadecimal format

  3. IMPORTANT: Copy this recovery key and store it securely

    • This is the ONLY time you can see it

    • Store it in a password manager or printed copy in a safe location

    • Without this, you cannot recover your private key if lost

  4. The system will encrypt your private key with this AES key and store the encrypted version

  5. Your actual private key is still only stored in your browser

Tip: The recovery key is separate from your private key. It’s used to decrypt the encrypted backup of your private key.

Exporting a Private Key

Not Recommended: Private keys should never leave your browser. However, if absolutely necessary:

  1. Go to Settings > Encryption Keys

  2. Click on the key you want to export

  3. Look for “Export Private Key” option (may be hidden or disabled)

  4. You’ll see a warning about security implications

  5. Copy the private key to a secure location

Warning: Exporting private keys significantly reduces security. Only do this if you have a compelling reason and proper security controls.

Tips & Validations

  • Key Storage: Private keys are stored in your browser’s localStorage, which is per-browser and per-device

  • Browser Sync: Private keys do NOT sync across browsers or devices automatically

  • No Server Storage: Your private key never goes to the server - it stays in your browser

  • age Encryption: Radegast uses the age encryption standard, which is based on ChaCha20-Poly1305 and X25519

  • Multiple Keys: You can have many key pairs, each with its own public and private key

  • Device-Specific: Each device uses one public key, but you can change which key a device uses

Tip: Generate a recovery key for each key pair and store it securely. This is your only backup option.

Tip: Name your key pairs descriptively (e.g., “Main Work Laptop”, “Backup Key”, “Old Server Key”)

Tip: If you use multiple browsers or devices, use the Transfer feature to share keys between them.

Tip: The recovery key is a 64-character hexadecimal string (256 bits). Store it securely.

Tip: If you clear your browser data, you’ll lose your private keys. Always have a recovery plan.

Tip: You can have devices using different public keys. The system will try all your private keys when decrypting.

Troubleshooting

No private key found / Can’t decrypt logs

  • Browser cleared: Your browser’s localStorage may have been cleared

  • New device: You’re using a new browser or device without the key

  • Private browsing: Private/incognito mode may not have access to stored keys

  • Solution: Use Key Recovery or Key Transfer to restore your key

“Private Key Not Found” warning on dashboard

  • No keys: You may not have any keys created

  • Keys not loaded: The system may not have loaded your keys yet

  • Solution: Go to Settings > Encryption Keys and create or recover a key

Recovery key doesn’t work

  • Wrong key: You may be using the wrong recovery key

  • Formatting: Ensure the key is exactly 64 hexadecimal characters (0-9, a-f)

  • Corrupted: The encrypted private key backup may be corrupted

  • Already used: Recovery keys can typically be used multiple times

Transfer token doesn’t work

  • Expired: Transfer tokens may expire after a short time (e.g., 5-10 minutes)

  • Already used: Transfer tokens are typically one-time-use

  • Wrong browser: Ensure you’re copying from the source browser where the key is stored

  • Network issues: The transfer requires network connectivity

Can’t create a key pair

  • Browser issue: Your browser may not support the required Web Crypto API

  • Storage full: localStorage may be full

  • Private mode: Some browsers block localStorage in private mode

  • Solution: Try a different browser or clear localStorage

Logs show as encrypted

  • Missing key: You may not have the private key corresponding to the public key used by the device

  • Wrong user: You may not be the user who created the device

  • Key deleted: The key pair may have been deleted

  • Solution: Ensure you have the correct private key, or ask the device creator to share their public key with you

Multiple keys causing confusion

  • Too many keys: Having many key pairs can make management difficult

  • Decryption order: The system tries keys in order (default first, then others)

  • Solution: Delete unused key pairs and consolidate to fewer keys
